Description
Engineering Overview

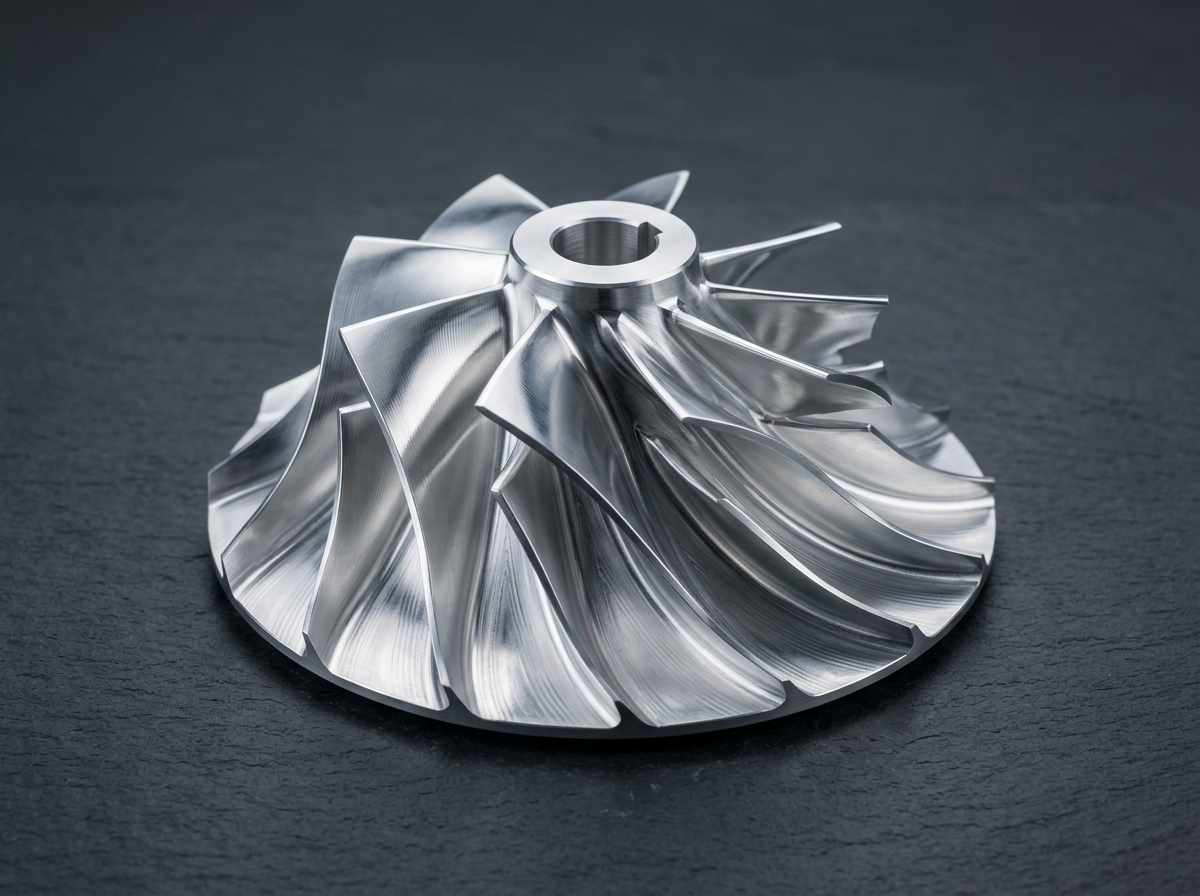

The Induvex IND-CNC-5AX-880 is an industrial-grade centrifugal impeller designed to meet the rigorous demands of aerospace propulsion, industrial centrifugal compressors, and turbo-machinery fluid circulation. Machined from solid aircraft-grade 7075-T6 billet alloy on 5-axis machining centers.
Key Performance Advantages
- 5-Axis Simultaneous Milling: Eliminates re-fixturing deviations, delivering monolithic dimensional stability.
- Dynamic Balancing: Precision balanced according to ISO 1940 Grade G1.0 up to 65,000 RPM.
- Surface Finishing: Hard-coat anodized with ultra-fine bead blasting (Ra ≤ 0.4 µm).
- CMM Verified: 100% full-geometry inspection report included.
Technical Specifications
| Base Material | Aerospace Aluminum 7075-T6 / Stainless Steel 316L |
| Machining Method | Simultaneous 5-Axis High-Speed CNC Milling |
| Geometric Tolerance | ±0.005 mm (5 Microns) |
| Surface Roughness | Ra ≤ 0.4 µm |
| Max Operational Velocity | 65,000 RPM (ISO 1940 Grade G1.0) |
| Compliance Certification | ISO 9001:2015, AS9100D, RoHS Compliant |
